Inner values are all well and good, but sometimes it’s the look that counts.

The e-bike charging station from loyoubi is not one of that everyday plastic, usually colourful constructs, because loyoubi has high standards when it comes to design, value and robustness. The minimalist design of the charging station is the result of several iterations to find the perfect user-friendliness and proportions and blends in well with the modern, public streetscape.

It is no coincidence that the loyoubi e-bike charging station 2023 is the only one of its kind to win the prestigious iF and reddot design awards.

loyoubi is made for eternity

Even pretty boys can be robust – at least our charging station is.

Because our impact-resistant charging station is made of high-quality, weather-resistant aluminium and powder-coated.

A charging station as individual as you are

So that recognition, brand image or uniform design language are no problem.

On request, our e-bike charging station is also available in other materials such as stainless steel or Corten steel and can be customised with design elements, cables and housing paintwork in RAL colours – in other words, everything for your own branding with logo and CI.

loyoubi always stays firmly on the ground

After all, we don’t want you to lose it.

That’s why we offer various mounting options as standard accessories, e.g. by screwing it on or setting it in concrete using aluminium ground spikes.

We make charging life easier

and avoid the widespread range anxiety among e-bikers.

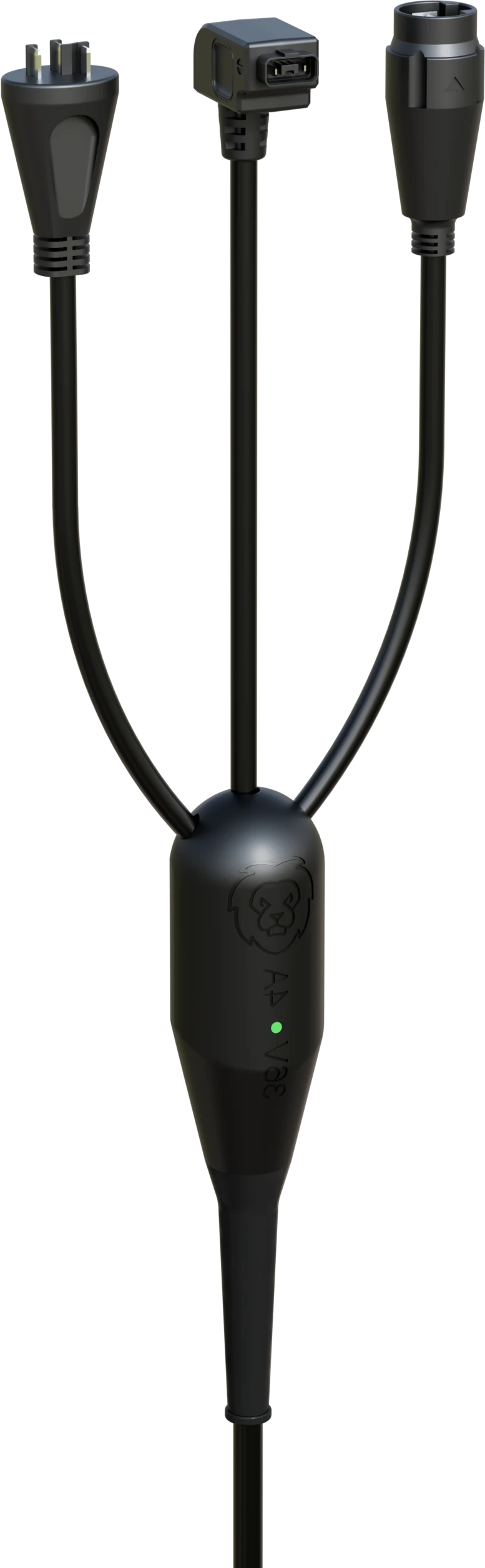

Our e-bike charging station enables charging without an extra charger – simply bring your bike and plug it in – thanks to separate charging electronics with various connectors for Bosch, Stromer, Flyer, Yamaha, Shimano and others. The delivery is ready for installation.

It is publicly accessible and offers the flexibility you need for charging. loyoubi is not just a charging station, but a modular system:

Double or single charger, equipped with the charging technology of the most important e-bike providers.

Based on our research, loyoubi is the first free-standing e-bike charging solution that can significantly support the transition to new and sustainable mobility as a high-quality, attractive and durable element of public infrastructure.

loyoubi conserves resources

and is set to become even more sustainable in the future

Our charging station for e-bikes has a modular design and therefore helps to conserve resources, as the main unit can be easily converted or replaced in the event of repairs or technology updates.

In addition, we are already thinking one step ahead and are researching suitable renewable, natural materials as an alternative to aluminium housings.

We are European and so is our charging station

because loyoubi was developed in Germany and is produced in Europe.

A charging station as individual as you are

So that recognition, brand image or uniform design language are no problem.

On request, our e-bike charging station is also available in other materials such as stainless steel or Corten steel and can be customised with design elements, cables and housing paintwork in RAL colours – in other words, everything for your own branding with logo and CI.

loyoubi always stays firmly on the ground

After all, we don’t want you to lose it.

That’s why we offer various mounting options as standard accessories, e.g. by screwing it on or setting it in concrete using aluminium ground spikes.

Befestigungssysteme

We make charging life easier

and avoid the widespread range anxiety among e-bikers

Our e-bike charging station enables charging without an extra charger – simply bring your bike and plug it in – thanks to separate charging electronics with various connectors for Bosch, Stromer, Flyer, Yamaha, Shimano and others. The delivery is ready for installation.

It is publicly accessible and offers the flexibility you need for charging. loyoubi is not just a charging station, but a modular system:

Double or single charger, equipped with the charging technology of the most important e-bike providers.

Based on our research, loyoubi is the first free-standing e-bike charging solution that can significantly support the transition to new and sustainable mobility as a high-quality, attractive and durable element of public infrastructure.

loyoubi conserves resources

and is set to become even more sustainable in the future

Our charging station for e-bikes has a modular design and therefore helps to conserve resources, as the main unit can be easily converted or replaced in the event of repairs or technology updates.

In addition, we are already thinking one step ahead and are researching suitable renewable, natural materials as an alternative to aluminium housings.

We are European and so is our charging station

because loyoubi was developed in Germany and is produced in Europe.

Smart charging with ease – the next level of electromobility

  • Input voltage: 220 – 240 Vac

  • Frequency: 50 – 60 Hz

  • Charging voltage: 42 – 58.8 Vdc

  • Charging current: 0 – 6 A

  • Max. System power: 500 W

  • Convection cooling

  • Overvoltage and overtemperature protection

  • CAN communication (optional)

  • Safety design of the charging electronics in accordance with
    IEC60335-1, IEC60335-2-29

  • Weight:           22 kg
    Height:            1,200 mm
    Width:             205 mm
    Depth:             205 mm

Smart charging with ease – the next level of electromobility

  • Input voltage: 220 – 240 Vac

  • Frequency: 50 – 60 Hz

  • Charging voltage: 42 – 58.8 Vdc

  • Charging current: 0 – 6 A

  • Max. System power: 500 W

  • Convection cooling

  • Overvoltage and overtemperature protection

  • CAN communication (optional)

  • Safety design of the charging electronics in accordance with
    IEC60335-1, IEC60335-2-29

  • Weight:           22 kg
    Height:            1,200 mm
    Width:             205 mm
    Depth:             205 mm

e-bike charging stations from loyoubi are added value

Everyone is talking about the future of mobility, but a functioning charging infrastructure for e-bikes is anything but self-evident.

Even more reason to be a decisive step ahead of other companies, local authorities, tourist regions, catering and hotel businesses or your competitors in the retail, commercial or housing sectors and increase your own attractiveness with e-bike charging stations.

Investing in charging infrastructure means investing in the future, not only for cars but also for e-bikes, because e-bikes are playing an increasingly important role as a means of transport in urban mobility and tourism concepts.

And such investments are also eligible for subsidies – not bad, right?.

Shopping takes time and time can be utilised or even sweetened. So why not consciously create and utilise the need for a pleasant pastime?

A cappuccino in a café, a lunch break in a restaurant or simply strolling through the city and browsing in shops and shops – who doesn’t like to do that – if they have the time?

Charging at a loyoubi e-bike charging station provides this time for more enjoyment, more relaxation or more shopping experience virtually unnoticed and through the back door – a piece of welcome deceleration on the one hand, an opportunity to retain customers and guests through positive experiences on the other.

Turn your business into a magnet for guests and customers with a charging station.

Bike tourism is booming, the bicycle and especially the e-bike is becoming a core element of e-mobility and thus the means of transport of the future.

When developing sustainable and future-proof tourism in terms of mobility and establishing a region as an attractive e-bike destination, a modern and comprehensive charging infrastructure is essential in addition to the corresponding route highlights.

Only with a suitable infrastructure will e-bike enthusiasts decide in favour of a particular region and if the e-bike charging stations are also cleverly positioned – namely where e-bikers like to spend their charging time – the added value will also work.

That’s why loyoubi charging stations should be set up where people like to eat and drink: snack stations, shopping centres, inns, beer gardens, etc.

Turn a previously inconspicuous region into an e-bike hotspot with the help of a well-thought-out e-bike infrastructure. The right charging infrastructure enables tours without limits, even for hobby cyclists.

Make guests who are travelling on holiday without their own car mobile.

Make yourself more attractive as an employer by enabling your employees to charge their e-bikes easily.

Sharpen your public image, because by promoting e-mobility with a loyoubi e-bike charging station, your company is making a significant contribution to sustainable and environmentally friendly mobility.

By offering free, uncomplicated charging, you can motivate your employees to avoid using their cars to get to work and thus not only promote the health of your employees, but also the sustainability of your company and actively contribute to climate protection.

Charging with loyoubi can also be so easy for your customers and business partners: park your e-bike, plug it in, go shopping or to a meeting and then continue your climate-conscious journey with a fully charged battery.

If you make e-biking simple and uncomplicated with an appropriate charging infrastructure network, cities, municipalities and towns will be relieved of traffic congestion.

Traffic jams in city centres will decrease, parking spaces will be created and the quality of life for residents will increase.

Benefit from attractive subsidies, e.g. in housing construction projects etc.

Charging station mounting systems

The environment in which the charging stations are located influences the choice of ground anchoring. Weather conditions, specific requirements and soil conditions must be taken into account when selecting the ground anchoring to ensure stability and safety.

Before installing ground anchors for charging points, it is advisable to follow the manufacturer’s instructions and, if necessary, consult a specialist to ensure that the installation meets local standards and requirements.

There are 3 installation systems available depending on the ground conditions

The ground spikes are made of high-quality, corrosion-resistant aluminium. They ensure that the charging station is secure and durable. The position of the ground spikes can be transferred to the ground using the drilling template supplied.

The charging station has a recess in the base plate and a connection cable with plug.

For the electrical connection of the charging station, a power cable from the power grid is required on site, which must fulfil the necessary voltage and current requirements.

The ground screw-on plate is suitable for installation on horizontal and level concrete floors and is securely anchored to the ground with corrosion-resistant screws and plugs.

They ensure that the charging stationis secure and durable. The position of the screws can be transferred to the floor using the drilling template supplied.

The charging station has a recess in the base plate and a connection cable with plug.

For the electrical connection of the charging station, a power cable from the power grid is required on site, which must fulfil the necessary voltage and current requirements.

The floor mounting plate is suitable for installation on horizontal and level surfaces.

The charging station has a recess in the base plate and a connection cable with plug.

For the electrical connection of the charging station, a power cable from the power grid is required on both sides, which must fulfil the necessary voltage and current requirements.
